Description

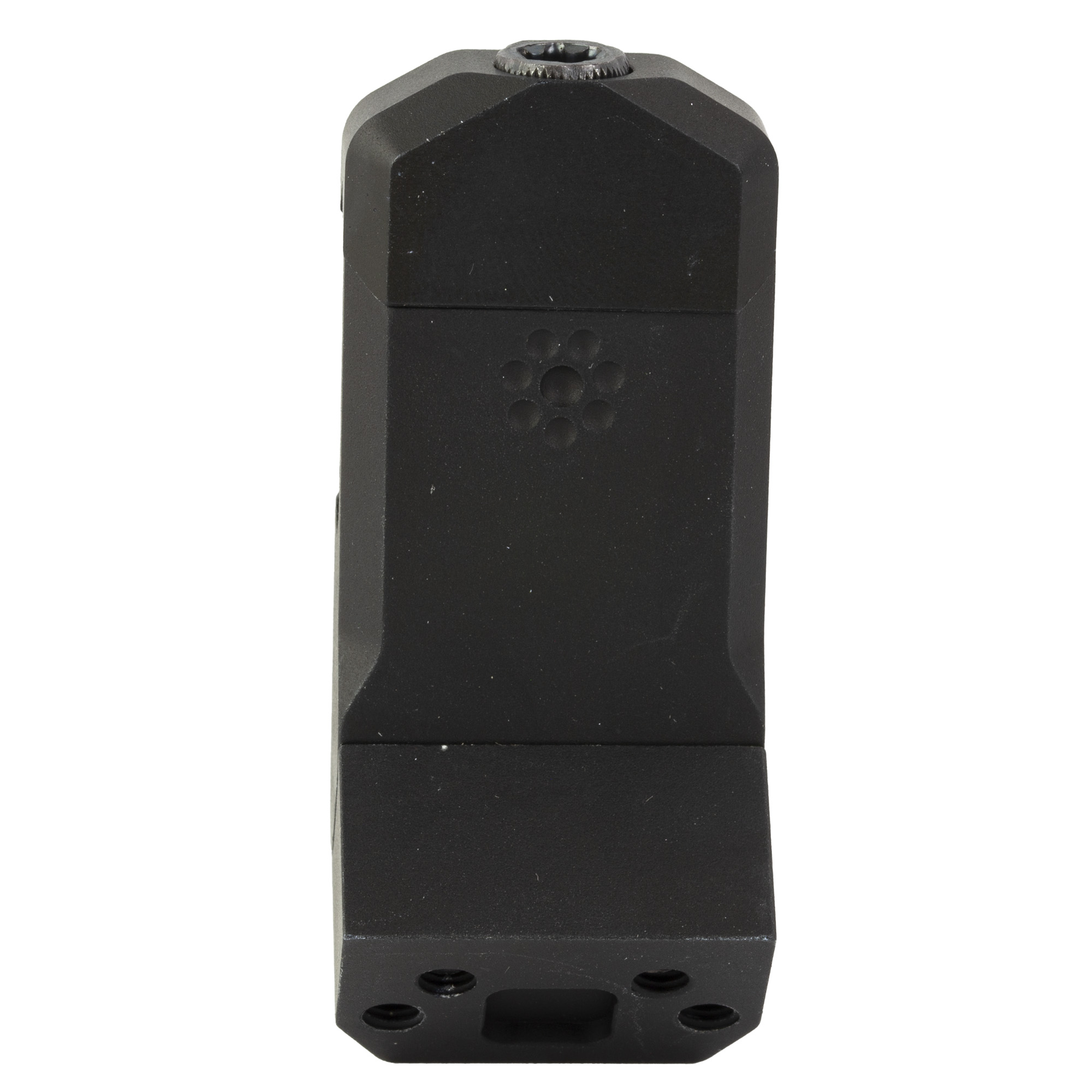

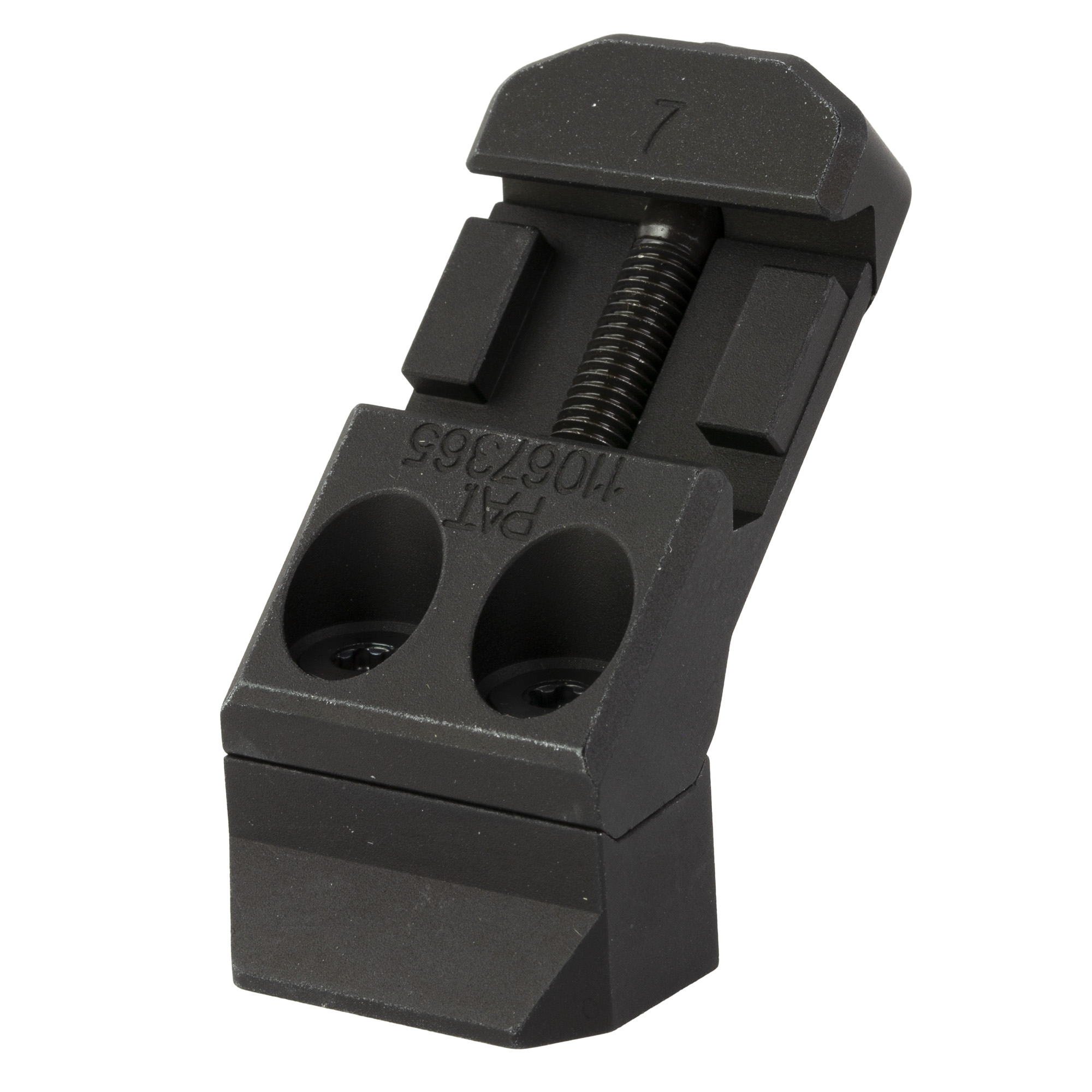

“The Patented Arisaka Offset Optic Mount is a modular mounting solution that allows the user to select a 35 or 45 degree offset position for their red dot sight without additional components. The 35 degree position brings the red dot sight up closer to slimmer, smaller scopes, while the 45 degree position provides additional clearance around wider turrets. The mount is set to 35 or 45 degrees by reversing the stem between the optic plate and base during assembly. The mount’s unique geometry correctly aligns the optic vertically over the bore and maintains a consistent height at both 35 and 45 degrees. Two heights of plates are offered

Features

• 1.9 oz including standard optic plate
• 2.2 oz including tall optic plate
• Length: 1.0″ for the base, which occupies three Picatinny slots (twin recoil lugs and clamping screw)
• Height: The base sits 0.180″ above the surface of the Picatinny rail
• Hardware: One 10-32×1.5″ Torx socket cap head screw, two M4x16mm screws. Each separate plate includes two M4x10mm screws
• Made in the USA
